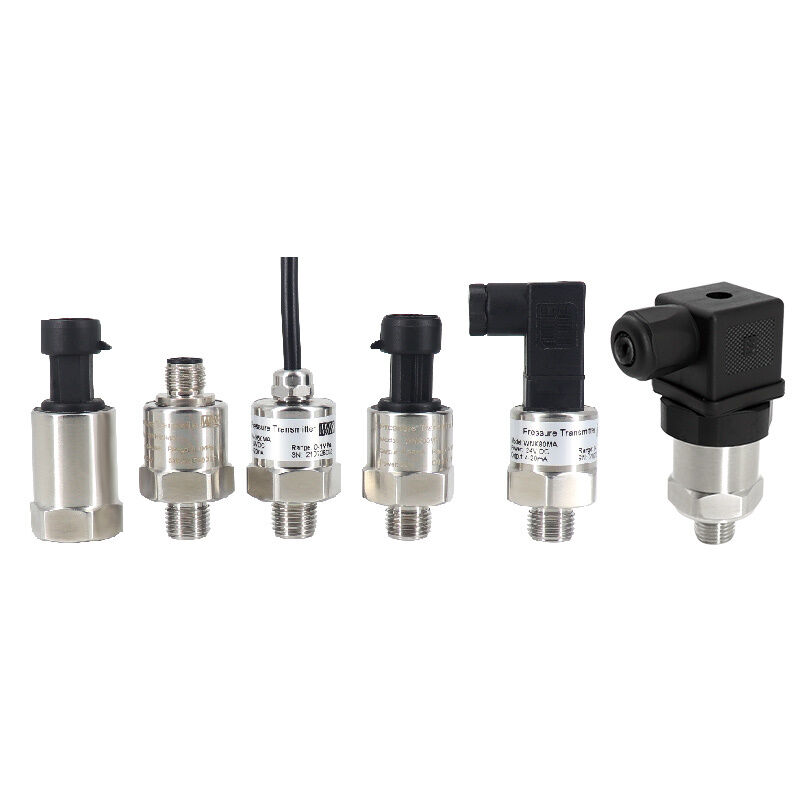

OEM Pressure Transmitters 4-20mA Water Oil air Steam Pressure Sensors for Industry

OEM pressure transmitters 4-20mA

industrial water oil pressure sensors

steam pressure sensors with warranty

起源の場所:

チアン

ブランド名:

WNK

証明:

CE/ROHS

モデル番号:

WNK80MA

連絡ください

引金を求めてください

製品詳細

測定されたメディア:

水、空気、ガス、蒸気

ハウジング材質:

304SS、316SS

正確さ:

0.5％fs

圧力範囲:

10kpa、-100kpa ... 70mpa

アプリケーション:

水気冷媒HVAC、自動車

出力信号:

4-20MA、0.5-4.5V、0-10V、3.3V、I2C、RS485

圧力式:

ゲージ圧力、絶対圧力、シーリング圧力

IP等級:

IP65

ハイライト:

OEM pressure transmitters 4-20mA

industrial water oil pressure sensors

steam pressure sensors with warranty

支払いと送料の条件

WNK工業圧力変換器 0-10V 4-20mA出力計絶対圧力センサーエアコンプレッサー OEM

最高の価格を入手する

ビデオ

ステンレス鋼 0.5% 精度 4-20mA 0-5V 0-10V 圧力センサー/トランスデューサー/トランスミッター

最高の価格を入手する

ビデオ

低コストの分散型シリコンオイルで満たされたコーヒーマシン用圧力センサー

最高の価格を入手する

ビデオ

WNK 0.5-4.5V I2C M6 コーヒーマシン用水圧センサートランスデューサー

最高の価格を入手する

連絡ください

今連絡してください

製品説明

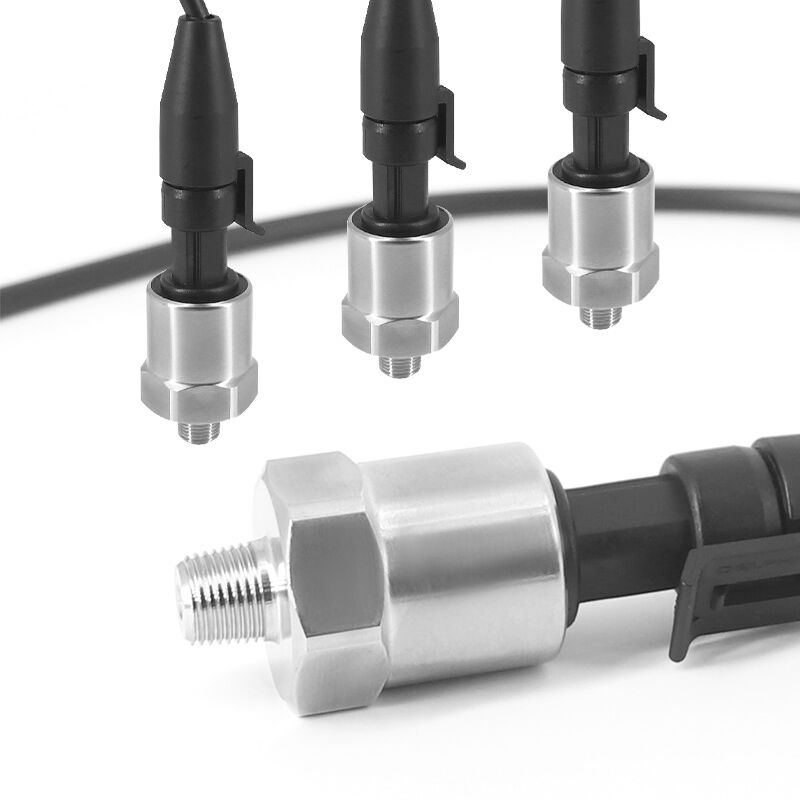

WNK 0.5-4.5V Air Pressure Sensor for Liquid gas and steam

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

OEM Pressure Transmitters 4-20mA Water Oil air Steam Pressure Sensors for Industry 5
