Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

家へ > 製品 > iot圧力センサー >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

起源の場所:

チアン

ブランド名:

WNK

モデル番号:

WNK125SP

連絡ください

引金を求めてください

製品詳細

機械関係:

M6*1 オーダーメイド

対応メディア:

液体、ガス

圧力式:

ゲージ圧力、絶対圧力

トールの誤差帯:

±1.0%

圧力範囲:

0-5bar,0~10bar,0~20bar,0~40bar

電源:

DC5V

出力:

0.5~4.5V,I2C

正確さ:

±1%FS

ハイライト:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

支払いと送料の条件

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

最高の価格を入手する

ビデオ

ATEX CE 4-20mA 0.5-4.5V I2C -100kpa-100MP 空気水圧トランスデューサー真空絶対圧感センサートランスミッター

最高の価格を入手する

ビデオ

WNK125P 0.5~4.5V 150PSI 圧力センサー 5Bar MAP センサーオート圧力センサー

最高の価格を入手する

ビデオ

WNK 低コストコンパクト圧力センサー 0.5-4.5V (空気、水、油用)

最高の価格を入手する

連絡ください

今連絡してください

製品説明

WNK Low Cost Pressure Sensor for Beer Coffee Machine

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

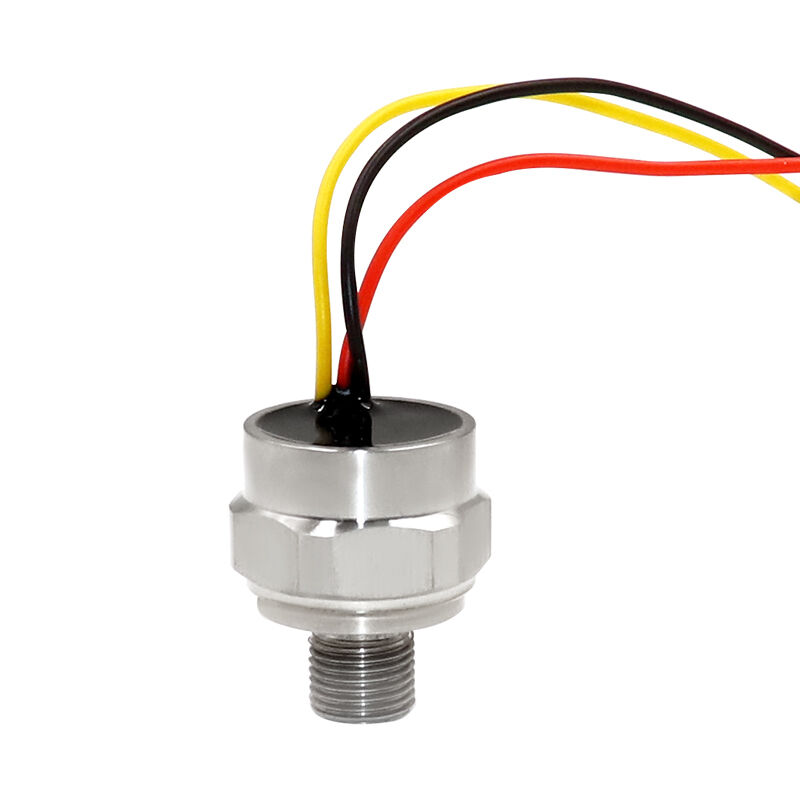

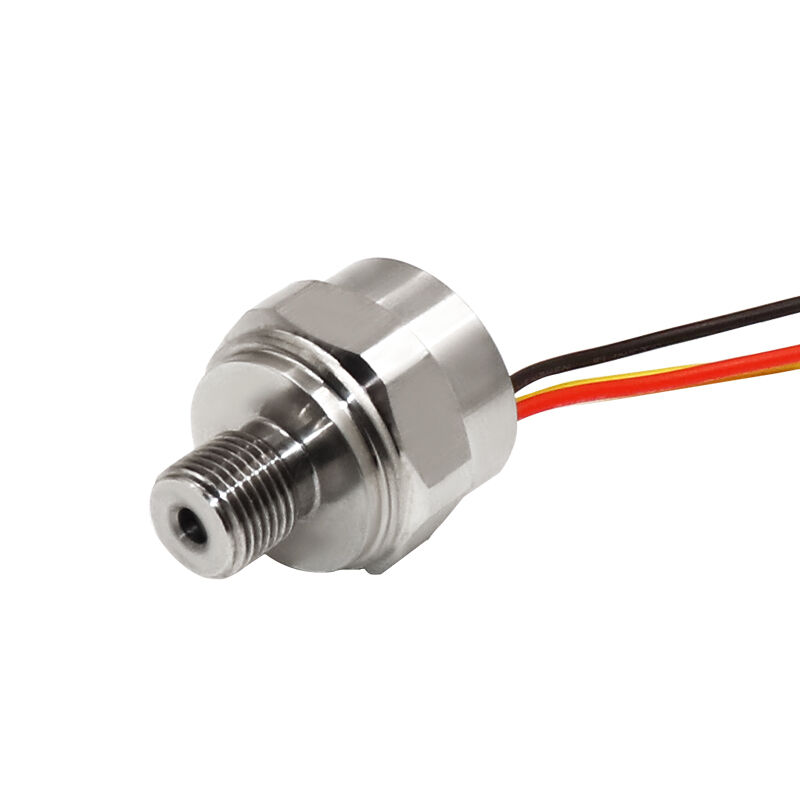

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

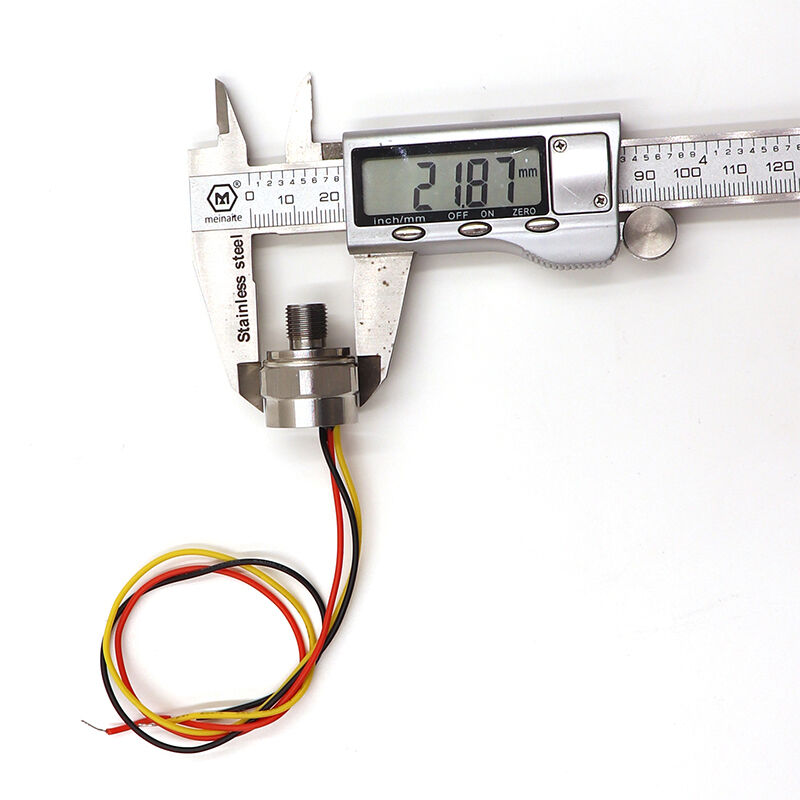

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
