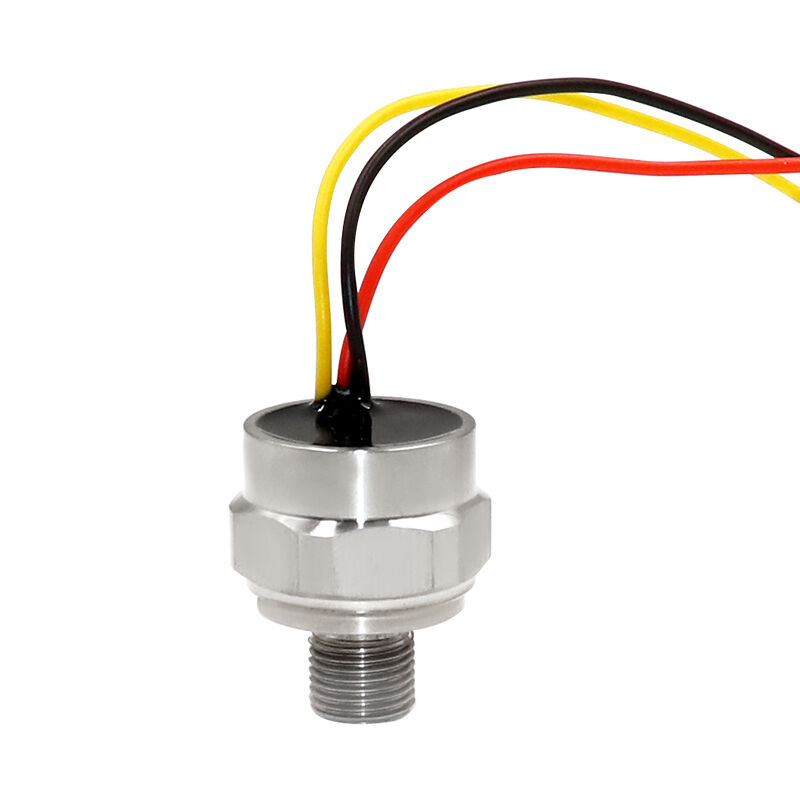

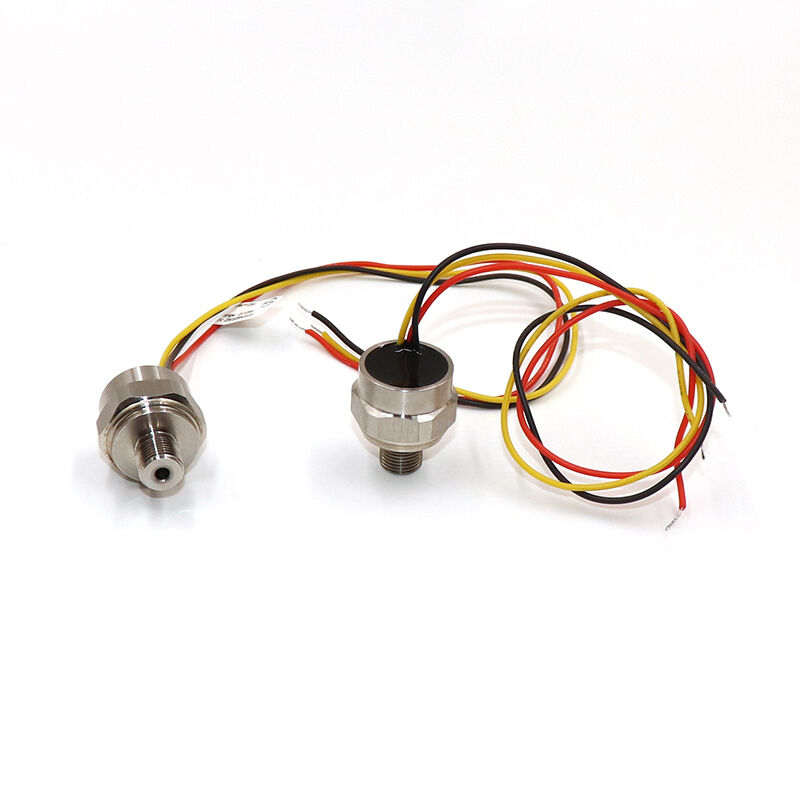

Name: WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

家へ > 製品 > iot圧力センサー >

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

起源の場所:

チアン

ブランド名:

WNK

モデル番号:

WNK125SP

連絡ください

引金を求めてください

製品詳細

機械関係:

M6*1 オーダーメイド

対応メディア:

液体、ガス

圧力式:

ゲージ圧力、絶対圧力

トールの誤差帯:

±1.0%

圧力範囲:

0-5bar,0~10bar,0~20bar,0~40bar

電源:

DC5V

出力:

0.5~4.5V,I2C

正確さ:

±1%FS

ハイライト:

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

支払いと送料の条件

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

最高の価格を入手する

ビデオ

ATEX CE 4-20mA 0.5-4.5V I2C -100kpa-100MP 空気水圧トランスデューサー真空絶対圧感センサートランスミッター

最高の価格を入手する

ビデオ

WNK125P 0.5~4.5V 150PSI 圧力センサー 5Bar MAP センサーオート圧力センサー

最高の価格を入手する

ビデオ

WNK 低コストコンパクト圧力センサー 0.5-4.5V (空気、水、油用)

最高の価格を入手する

連絡ください

今連絡してください

製品説明

WNK I2C Pressure Sensor for Coffee Machine

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine 0

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

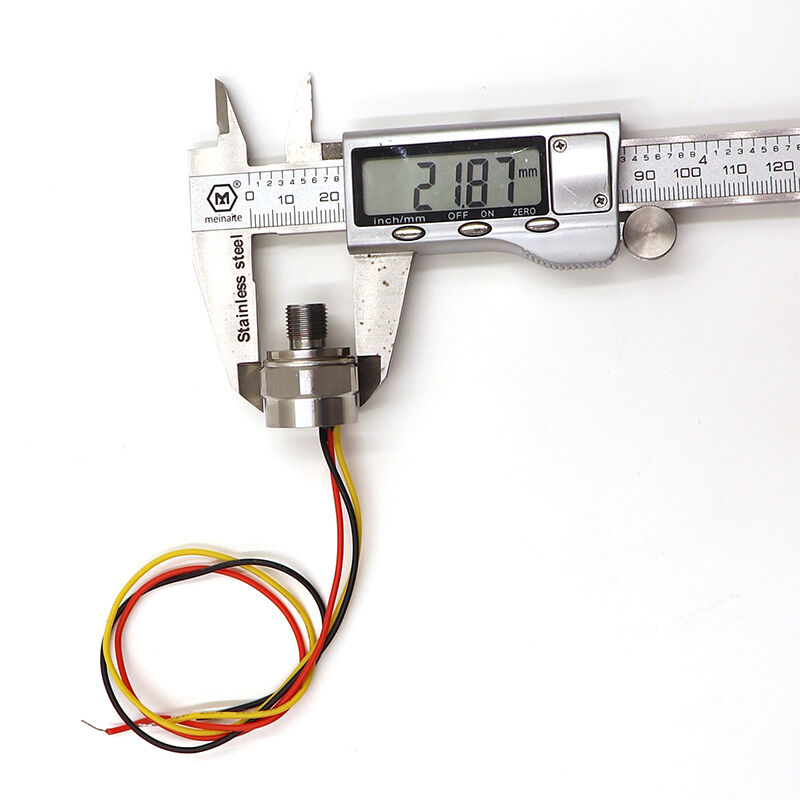

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
