WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

ATEX explosion proof water level sensor

submersible water tank level transmitter

underground water level sensor with warranty

起源の場所:

安徽省、中国

ブランド名:

WNK

モデル番号:

WNK8010-TT

連絡 ください
引金 を 求め て ください
製品詳細
保証:
1年
カスタマイズされたサポート:
OEM、ODM
圧力範囲::
0~2~200メートル
出力:
4~20mA、0~5V、1~5V、0.5~4.5V、0~10V
正確さ:
0.2%FS、0.5%FS、
電源:
DC12~36V
保護クラス:
IP68
応用:
雨水、飲料水、廃水、下水、海水
ハウジング材質:
304SS、316L
動作温度::
-40~85℃
タイプ:
ゲージ
OEMサービス:
OEM、ODM、カスタマイズ可能
ポート:
上海・寧波
ハイライト:

ATEX explosion proof water level sensor

,

submersible water tank level transmitter

,

underground water level sensor with warranty

支払いと送料の条件
最小注文数量
1個
パッケージの詳細
各セットは 1 つの個別のカートンに梱包され、フォームで保護されています。次にマスターカートンに入れます
受渡し時間
5~8営業日
支払条件
T/T、ウェスタンユニオン、マネーグラム、ペイパル
供給の能力
2000 個/月/個レベルの圧力センサー
関連製品
連絡 ください
今連絡してください
製品説明





Underground Water Tank Level Sensor





Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.







WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price







Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 0
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 1
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 2

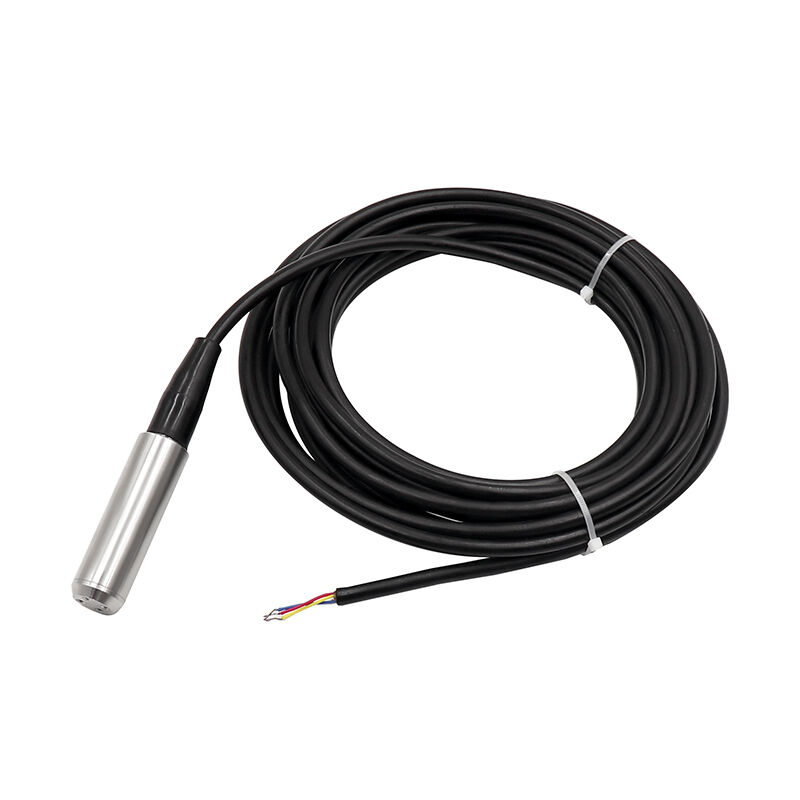

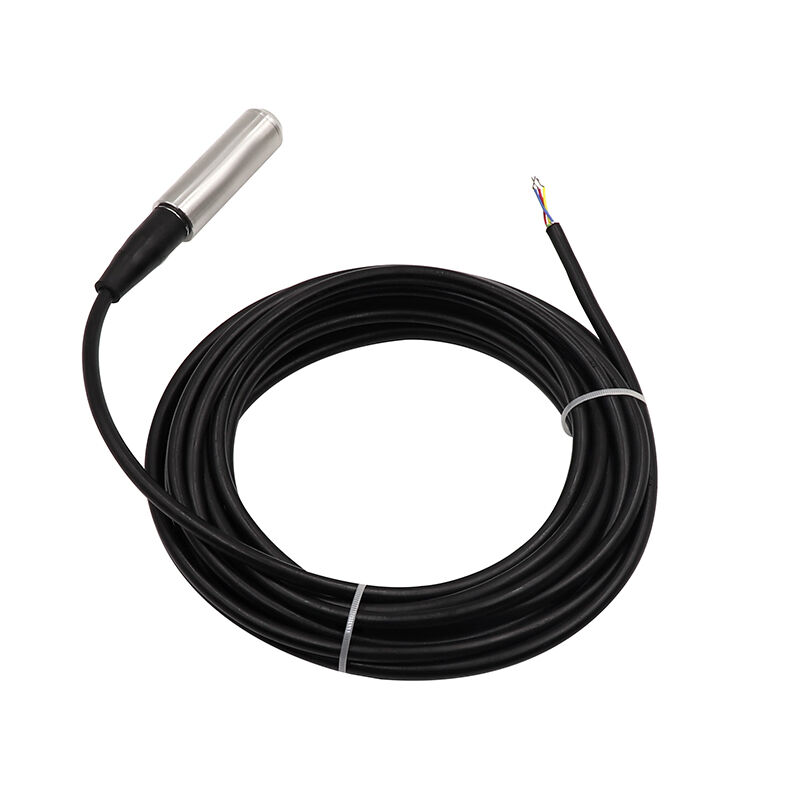

Product Show
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 3
