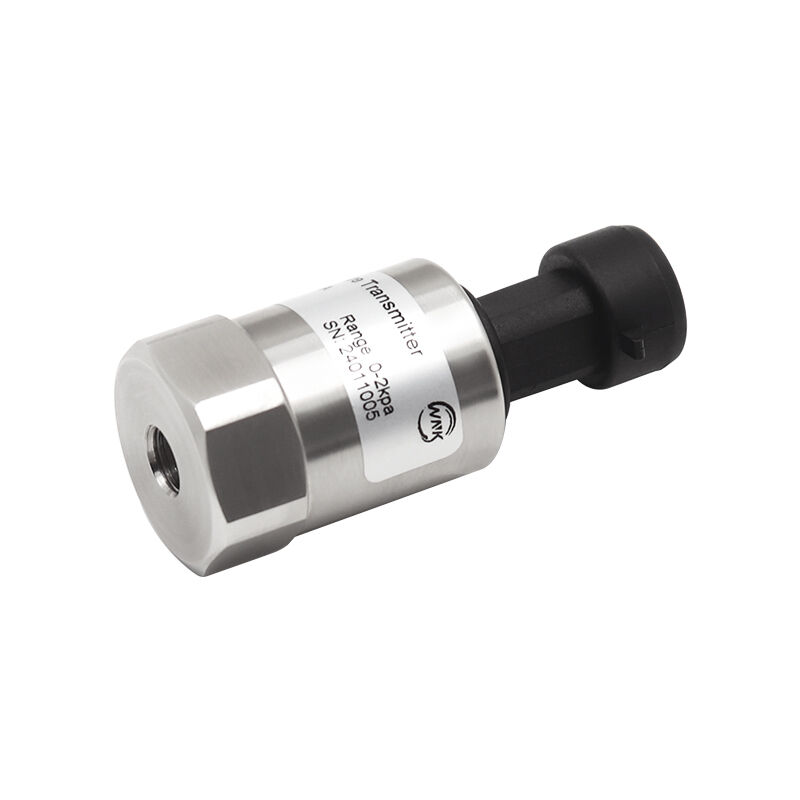

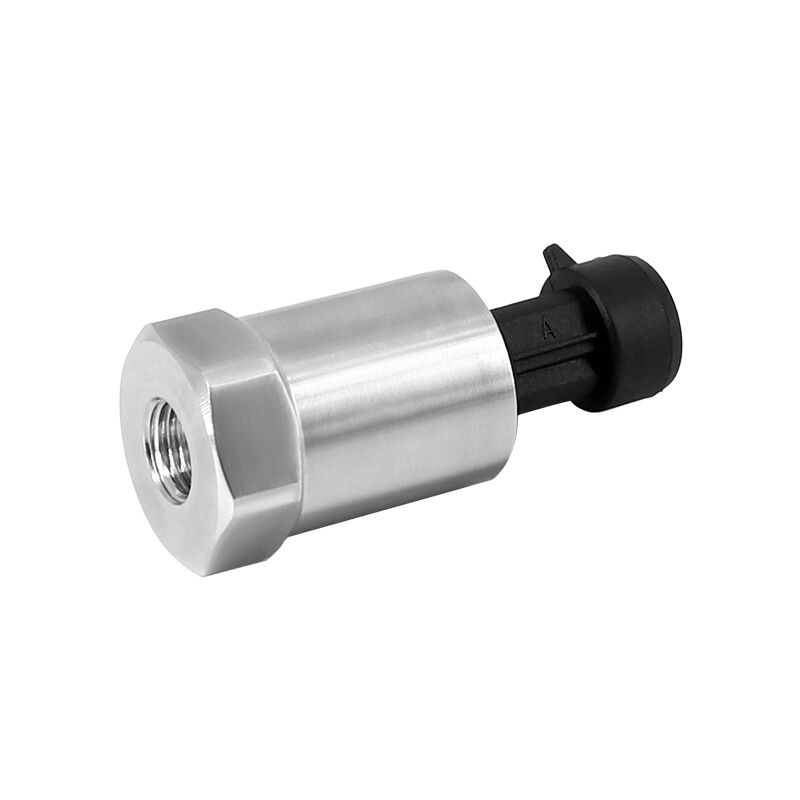

Name: WNK Hvac Air Conditioning 0.5-4.5V Pressure Sensor for R134a R404a R407c R410a R502 R507
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

家へ > 製品 > iot圧力センサー >

WNK Hvac Air Conditioning 0.5-4.5V Pressure Sensor for R134a R404a R407c R410a R502 R507

HVAC air conditioning pressure sensor

R134a R404a refrigerant pressure sensor

0.5-4.5V IOT pressure sensor

起源の場所:

チアン

ブランド名:

WNK

証明:

CE/ROHS

モデル番号:

WNK80MA

連絡ください

引金を求めてください

製品詳細

測定されたメディア:

水、空気、ガス、蒸気

ハウジング材質:

304SS、316SS

正確さ:

0.5％fs

圧力範囲:

10kpa、-100kpa ... 70mpa

アプリケーション:

水気冷媒HVAC、自動車

出力信号:

4-20MA、0.5-4.5V、0-10V、3.3V、I2C、RS485

圧力式:

ゲージ圧力、絶対圧力、シーリング圧力

IP等級:

IP65

ハイライト:

HVAC air conditioning pressure sensor

R134a R404a refrigerant pressure sensor

0.5-4.5V IOT pressure sensor

支払いと送料の条件

ユニバーサル産業用 4-20mA 0-10V 圧力センサートランスミッタートランスデューサー水気ガス

最高の価格を入手する

ビデオ

高精度トランスデューサ圧力センサー、水処理および給水システム用

最高の価格を入手する

ビデオ

WNK G1/4 1/8NPT スレッド M12 コネクタ 100Psi 飲料水処理エアコンプレッサ圧力センサトランスデューサトランスミッタ

最高の価格を入手する

ビデオ

WNK I2C 3.3V 1/8 スレッドコーヒーマシン内の水圧センサー

最高の価格を入手する

連絡ください

今連絡してください

製品説明

WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning,machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, SPI, I²C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Water Pressure Sensor for Air Gas

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

WNK Hvac Air Conditioning 0.5-4.5V Pressure Sensor for R134a R404a R407c R410a R502 R507 5
