Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

家へ > 製品 > 水位の送信機 >

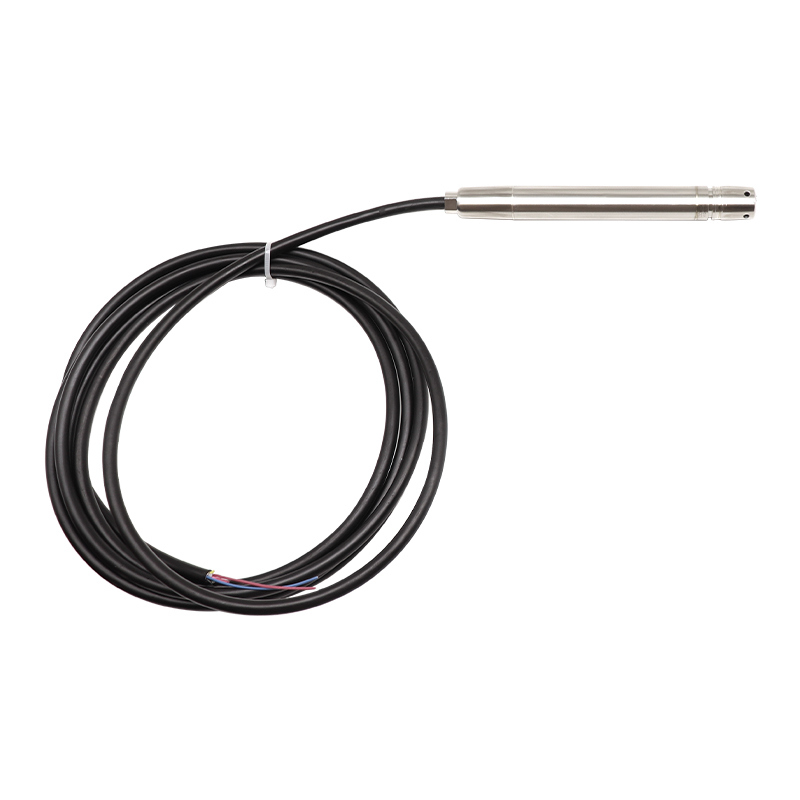

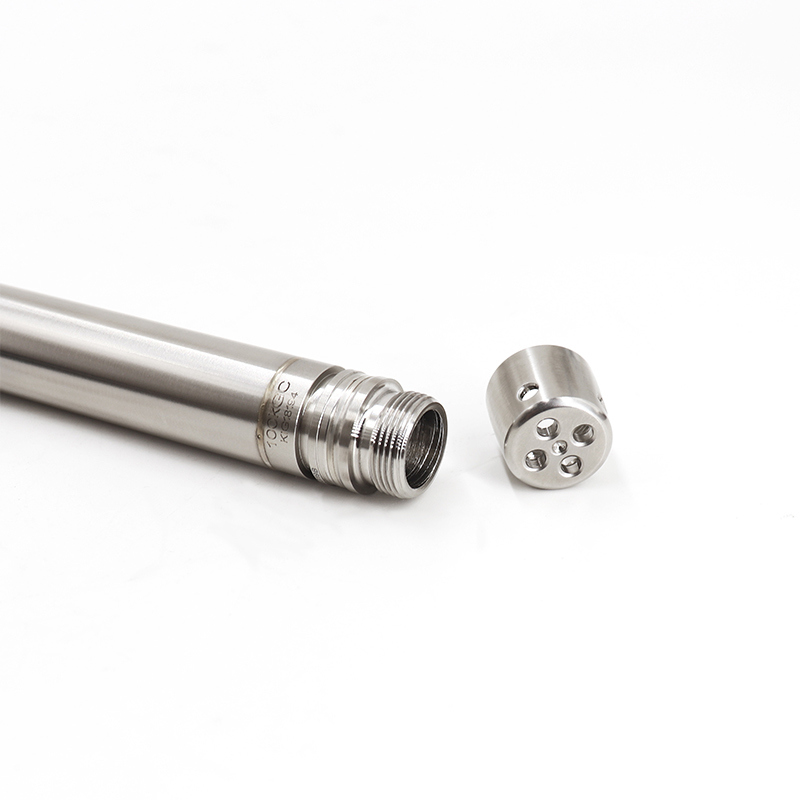

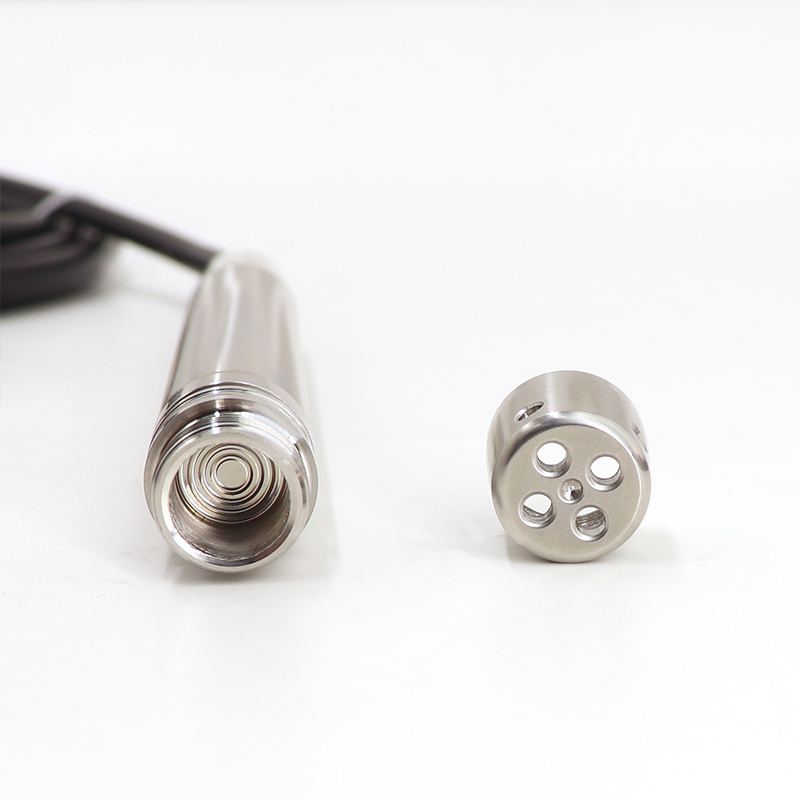

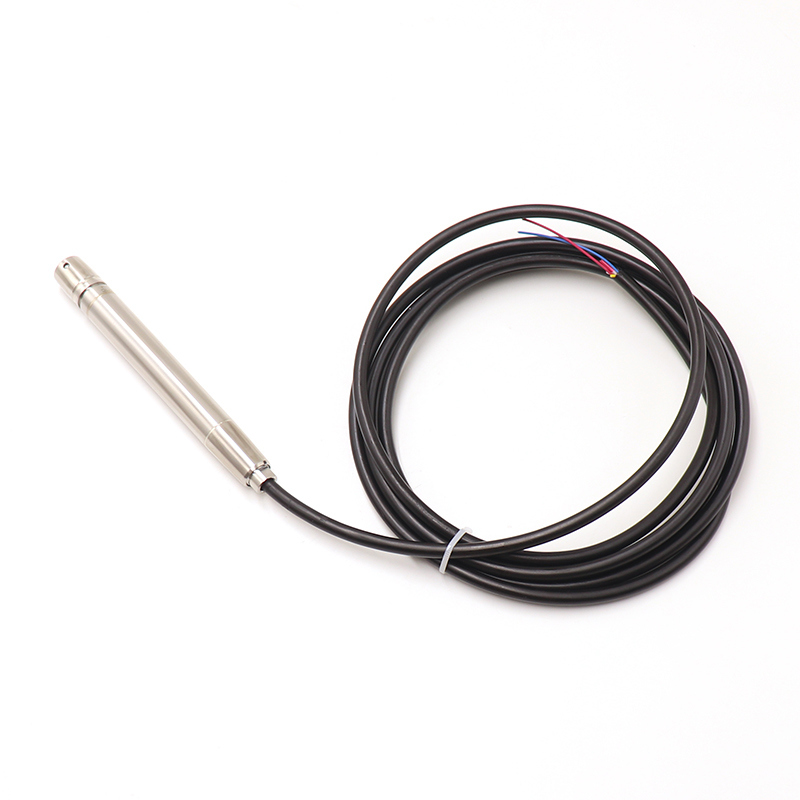

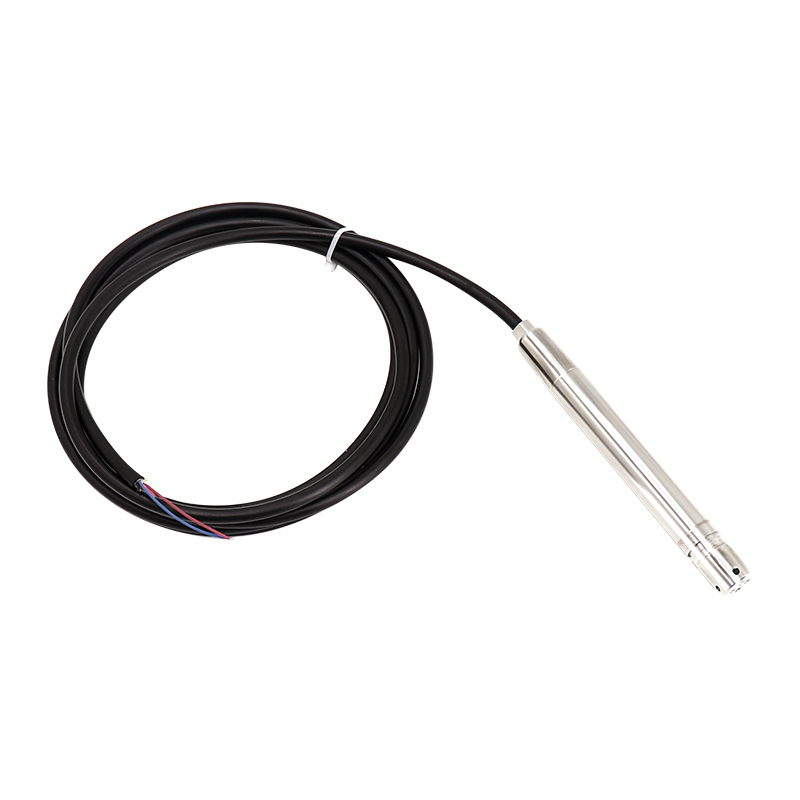

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

起源の場所:

中国のアンフイ

ブランド名:

WNK

モデル番号:

WNK8010-19

連絡ください

引金を求めてください

製品詳細

保証:

1年

カスタマイズされたサポート:

OEM、ODM

圧力範囲::

0...2~200メートル

出力:

4〜20mA 0〜5V 1〜5V 0.5〜4.5V 0〜10V

正確さ:

00.2%FS,0.5%FS

電源:

12~36VDC

保護クラス:

IP68

応用:

雨水,飲料水,廃水,下水,海水

住宅資料:

304SS,316L

動作温度：:

-40~85 ℃

タイプ:

ゲージ

OEMサービス:

OEM、ODMの利用できるカスタム化

ポート:

上海/ニンゴ

ハイライト:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

支払いと送料の条件

最小注文数量

1pcs

価格

$35.00 - $50.00/Pieces

パッケージの詳細

各セットを 1 つの個別紙箱に,泡で保護.その後マスター紙箱に

受渡し時間

5-8勤務日

支払条件

T/T、Western Union、MoneyGram、PayPal

供給の能力

月あたり2000個/個のレベル圧力センサー

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

最高の価格を入手する

ビデオ

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

最高の価格を入手する

WNK OEM 液体レベル測定 4-20mA 0.5-4.5V 水静止水位センサー

最高の価格を入手する

水中レベルトランスデューサ RS485 4-20mA 水位センサー水タンク用

最高の価格を入手する

連絡ください

86-551-65369655

今連絡してください

製品説明

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
