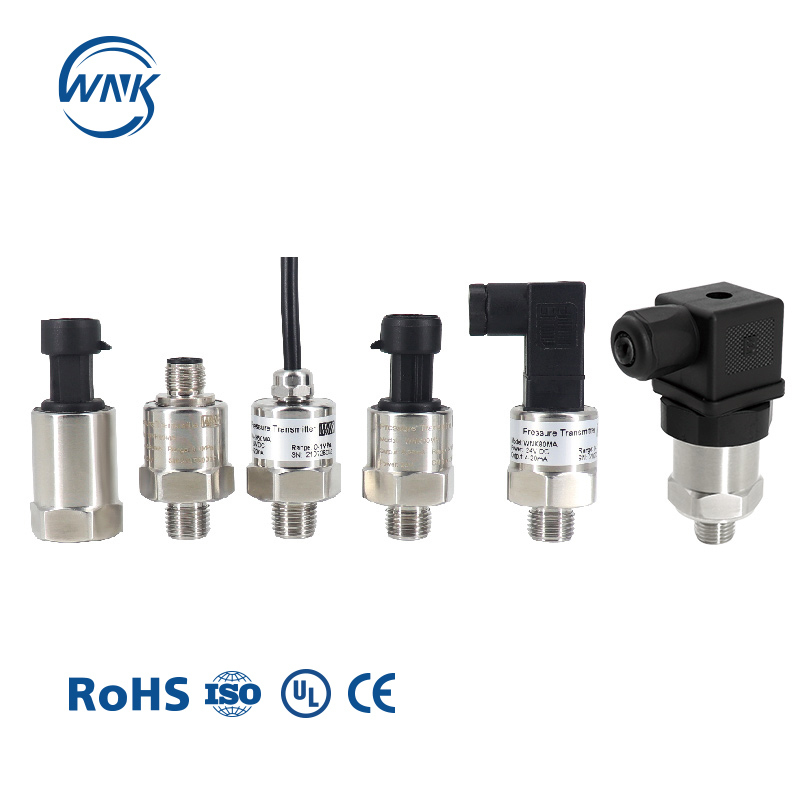

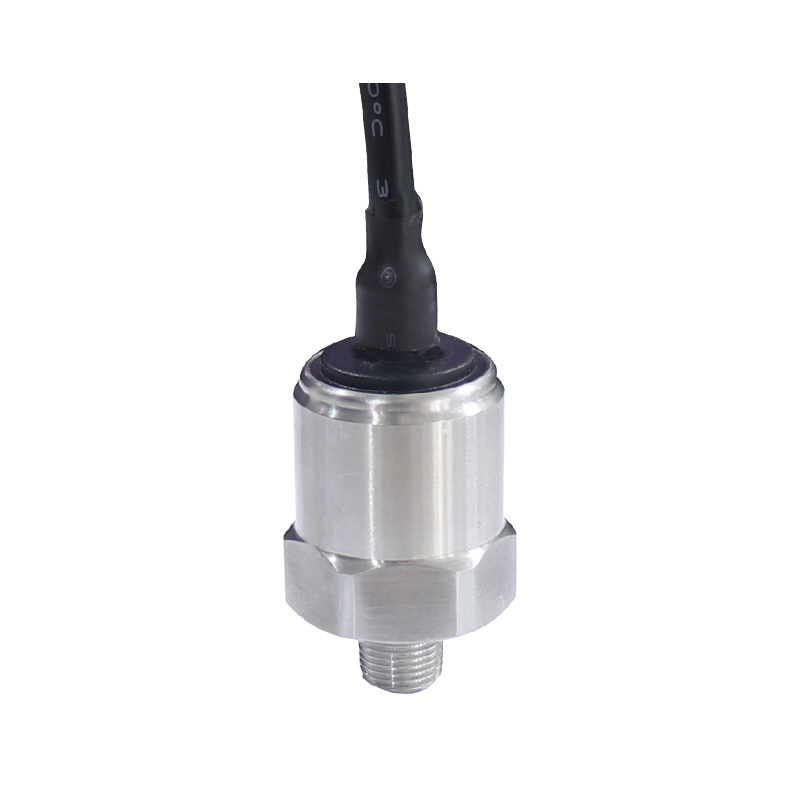

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.
With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Pressure type
Gauge pressure,sealing pressure
Output
0.5...4.5V, 4...20mA, I2C
Accuracy
1%, 0.5%
Commensation Temperature
-20...70℃
Ingress protection
IP65/IP67
Housing material
Stainless steel 304
Electrical connector
Packard, M12*4P, Cable outlet, Minni DIN43650, GX12-3
